Suggestion #9472

Workspace module redesign

Added by Sonja Schubert almost 5 years ago. Updated over 1 year ago.

Status:Resolved Start date:2010-08-26
Priority:Must have Due date:
Assigned To:Lars Zimmermann % Done:

0%
Category:Design
Target version:TYPO3 4.5 LTS
Tags:

Description

Dear all

we are going to redesign the existing workspace module in TYPO3, because refactoring with templating and so on would last longer. We discussed the module in the workspace team and created screens how it should look in TYPO3 4.5.

Before we begin to code we would highly appreciate your knowledge for the following questions:

- What do you think about the usability of the new module?
- What do you suggest as icon for "Jump to the page module and go to the page of this conent element" as described in the screen? The current icon is, I think, the old one for this
- How would you solve the OK button for the stage change select box?
- How would you design the pager? I suggest to use the TYPO3 pager from the list module

Unfortunately the explanations in the screens are German, if you need it in English we will be able to create an updated screen.

I know you have a lot to do but please note that we need your feedback by the next two weeks because we still need time to code befor feature freeze.

And please also note that it is not the target to create a completly new module which is perfect but completely different, we want to make the extisting module easier to use for the normale be_user.

Thank you so much for your help.

Kind regards,

Sonja

Workspace team leader

100819_ws_screen_review.jpg - Review tab (559.3 kB) Sonja Schubert, 2010-08-26 21:47

100819_ws_screen_ws_changes.jpg - ws changes tab (569 kB) Sonja Schubert, 2010-08-26 21:47






entwurf_4.5-workspaces-detail.png - Workspaces Detail Line unfolded (145.3 kB) Lars Zimmermann, 2010-09-18 19:50

entwurf_4.5-workspaces-detail-hover.png - Workspaces Detail Line unfolded (with optional hover state over the workspace content element) (147.2 kB) Lars Zimmermann, 2010-09-18 19:50

entwurf_4.5-workspaces.png - Sorting function for columns (157.5 kB) Lars Zimmermann, 2010-09-18 19:50



manual.doc (134 kB) Tolleiv Nietsch, 2010-10-25 19:17


entwurf_4.5-workspaces-3-detail.png - Workspaces List V3 with detailed view of a content (173 kB) Lars Zimmermann, 2010-11-03 18:26

entwurf_4.5-workspaces-3-vergleichsseite1.png - Workspaces Preview comparison-screen (226.4 kB) Lars Zimmermann, 2010-11-03 18:26

entwurf_4.5-workspaces-3-vergleichsseite2.png - Workspaces Preview comparison listview (11.3 kB) Lars Zimmermann, 2010-11-03 18:26


Related issues

related to Core - Feature #10642: Implement workspace preview Closed 2010-11-05
related to Core - Feature #11029: Workspaces module: Row detail view Resolved 2010-11-23 2010-11-30

History

#1 Updated by Jens Hoffmann almost 5 years ago

Team please give feedback to those screens here:

see updated screens below

#2 Updated by Sonja Schubert almost 5 years ago

  • File 20100907_workspace_editor added
  • File 20100907_workspace_editorInLive added
  • File 20100907_workspace_stagebox added

Dear all

after discussion and lots of feedback with and from our workspace team I've created new screens.

We would appreciate your feedback to the following points:

- What do you think about the usability of the new module?
- Do you see anything in the screens which is a no-go and should be improved?

Please note, that this second version of screens is done with pencil and not with photoshop so its possible that not everything looks exactly as in TYPO3. The tabs for example.. During programming we will design it the TYPO3-way.

Thank you for your feedback.

Best regards,

Sonja



#3 Updated by Jens Hoffmann almost 5 years ago

The Images are PNG's as filetype.
I will re-upload them again.

#5 Updated by Oliver Hader almost 5 years ago

  • File deleted (20100907_workspace_editor)

#6 Updated by Oliver Hader almost 5 years ago

  • File deleted (20100907_workspace_editorInLive)

#7 Updated by Oliver Hader almost 5 years ago

  • File deleted (20100907_workspace_stagebox)

#8 Updated by Oliver Hader almost 5 years ago

Missing in the screens:
  • column for current stage
Other problems:
  • how to visualize to users which workspace is currently activated

#9 Updated by Lars Zimmermann almost 5 years ago

Hi everyone,

I designed a proposal for the workspace module, based on mostly existing elements from the 4.4 backend. The icons are not final at all. Tomorrow in Wiesbaden I will take care of this...

A version with a unfolded element I will also add tomorrow, as well as the other missing elements. I just wanted to show a direction in which the workspace module could develope visually...

cheers
lars

#10 Updated by Tolleiv Nietsch almost 5 years ago

The second suggestion from Lars:

#11 Updated by Lars Zimmermann almost 5 years ago

Hi,

I've created a suggestion for the detail view with an optional hover state for the workspace-version content-item (does this makes sense there?).

I've also added to the original screen a sorting arrow for the columns as well as the properties dropdown-arrow.

After sleeping one night, I have to admit I don't like the changed header for the workspace version. I have to rethink this again...

Workspaces Detail Line unfolded
Workspaces Detail Line unfolded (with optional hover state over the workspace content element)
Sorting function for columns

#12 Updated by Sonja Schubert almost 5 years ago

updated suggestion for new workspace module by HCI team (jens and lars). created at core sprint meeting in Stuttgart

#13 Updated by Jens Hoffmann almost 5 years ago

  • File IMG_4611-2.jpg added
  • Category set to Design
  • Status changed from New to Accepted
  • Assigned To set to Lars Zimmermann

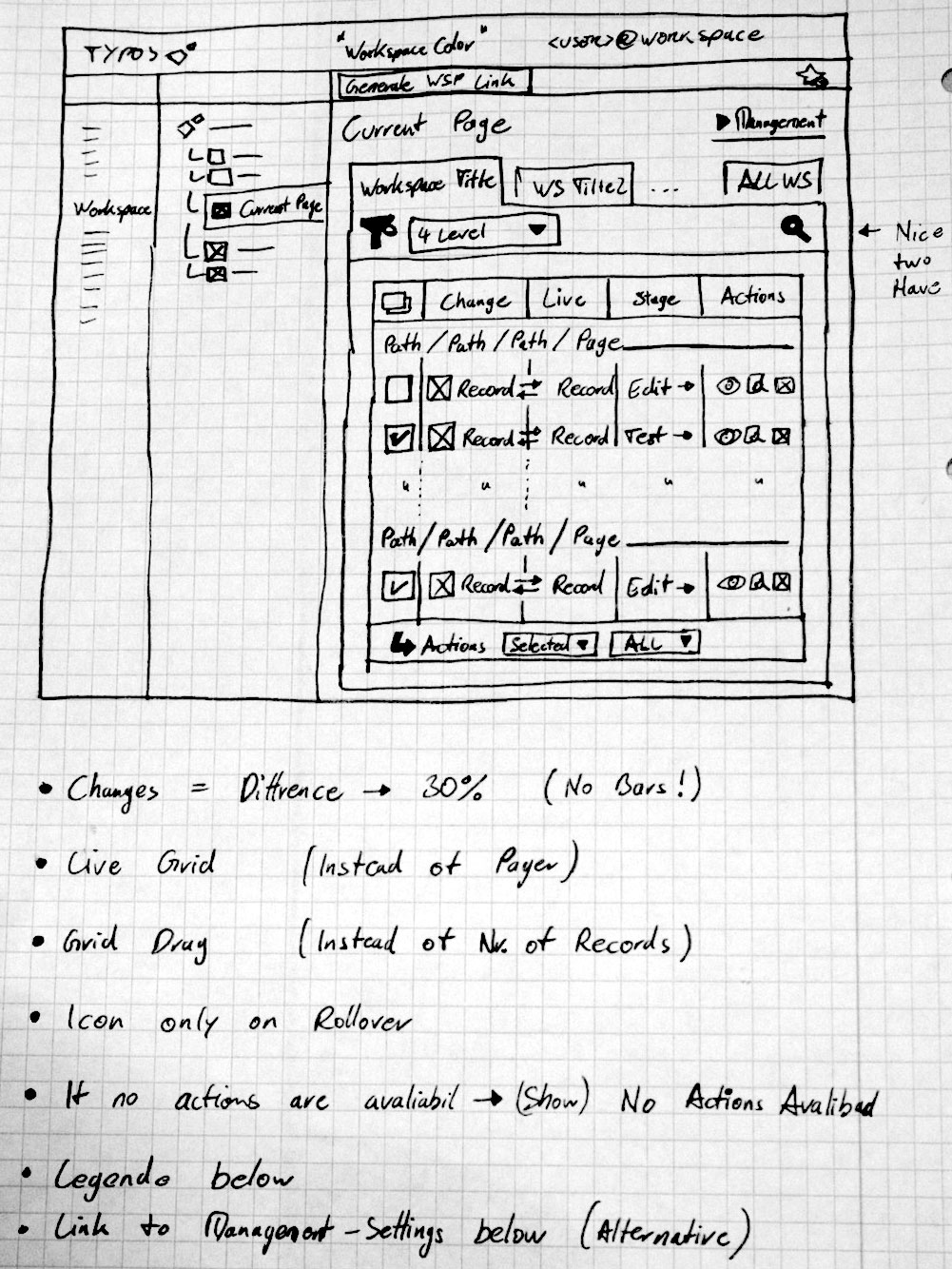

Preview Screen Concept:

#14 Updated by Lars Zimmermann almost 5 years ago

Hey guys,

I will create screens from the wireframes Jens provided. I hope I'll be able to create them within the next days.

cheers
lars

#15 Updated by Sonja Schubert almost 5 years ago

Hi Lars,

Thank you for the information. We also still need updated screens for the detail view of a row and for the TYPO3 head, as we discussed in Stuttgart. It would be nice if you could create them too.

Thank you for your help and greets

Sonja

#16 Updated by Tolleiv Nietsch almost 5 years ago

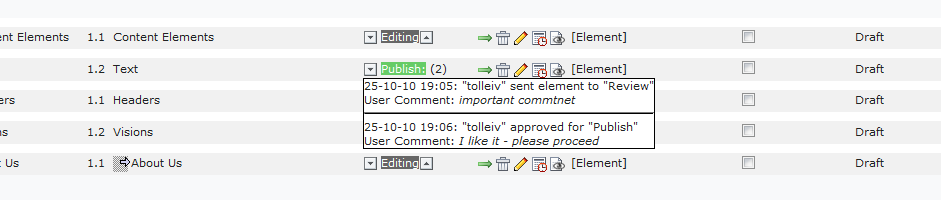

The messages which are sent in case the stage is changed should also be part of the foldout. The attachment shows how this was done in the old module.

#17 Updated by Tolleiv Nietsch almost 5 years ago

argh - manual.doc was not the right file ... see messages.png

#18 Updated by Jens Hoffmann almost 5 years ago

Open questions:

"Generate WSP Link" position, style and behavior need to be specified.

#19 Updated by Lars Zimmermann over 4 years ago

Finally I've created severals screens for the workspace team that I've already discussed with Jens via Skype.
I hope you'll like them...

In the preview screens the slider should maybe change the opacity between the live and the workspace page as an overlay (that's just a new idea to approach to see the difference - this still needs to be discussed)

The rest should be pretty straight forward and hopefully self-explanatory... =)

The icons in the workspaces list view should be really only be revealed on mouse-over. For the swap and "send-to-next-stage"-icons we should create dedicated columns that aren't sortable or movable within the ExtJS Grid.

cheers
lars

PS. Thank you Jens for your effort, time and valued input!

Workspaces List V3 with detailed view of a content

The workspaces view with a detailed content view including new user comments

Workspaces Preview comparison-screen

The new approach for the preview-comparison-screen: It's just a small header on top - very compact GUI

Workspaces Preview comparison listview

The new approach for the preview-list-screen: This should be straight forward from the rest of the backend - so I didn't create a special screen

#20 Updated by Lars Zimmermann over 4 years ago

  • Status changed from Accepted to Needs Feedback

#21 Updated by Lars Zimmermann over 4 years ago

  • File deleted (entwurf_4.5-workspaces-3.png)

#22 Updated by Lars Zimmermann over 4 years ago

  • File entwurf_4.5-workspaces-3.png added

ups, jens told me, I had a nano-error in the original screen. the hover was in the wrong line. now it's right...

#23 Updated by Lars Zimmermann over 4 years ago

  • File deleted (entwurf_4.5-workspaces-3.png)

#24 Updated by Lars Zimmermann over 4 years ago

I mean now it's right

#25 Updated by Tolleiv Nietsch over 4 years ago

Hi - regarding the workspace preview. The "Publish", "Reject" and "Drop changes" buttons are not part of our current concept (because they cause some further technical problems). Besides that I'd like to know what the "Help" tab shows ;)

#26 Updated by Jens Hoffmann over 4 years ago

  • Status changed from Needs Feedback to Resolved

We explained/defined that in a Skype meeting.

Could someone add the point from the Skype Meeting here?
@Sonja: Is there a protocol?

BTW: There is a prototype for the Preview window: http://www.steffenkamper.info/last/ws_preview.html

#27 Updated by Sonja Schubert over 4 years ago

Unfortunately there is no protcol from our last skype meeting, where we talked about the current design issues.

But the issues, which are still open, are open in the skin team area.

Yesterday I skyped with Steffen G., so the skin team knows where they can find which things. If there are questions upcoming, the workspace team is available to help, of course.

#28 Updated by Jens Hoffmann over 4 years ago

  • Subject changed from Workspace module redesign - some icons and usability check needed to Workspace module redesign
